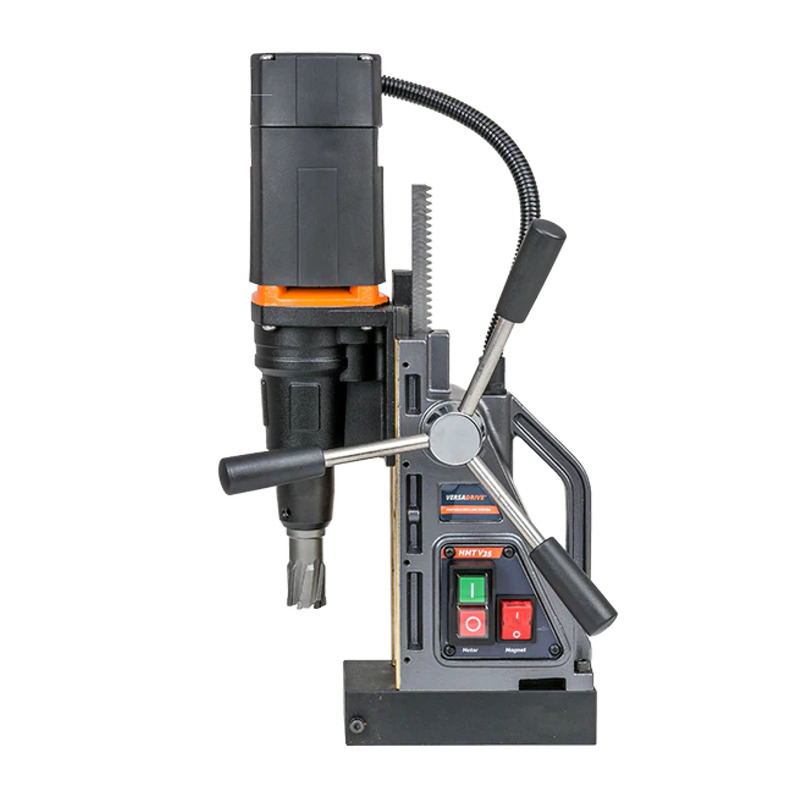

The HMT VersaDrive V35 is the first UK Built portable drilling machine designed for high-performance, low-maintenance, industrial quality drilling up to 35mm diameter.
With a 140mm stroke, maximum cutter length of 110mm and seamless integration with the VersaDrive modular cutting system, it offers the most flexibility of any compact Magnet Drill on the market.
MOST VERSATILE COMPACT MACHINE ON THE MARKET
Supplied with handles, heavy duty metal guard system, VersaDrive Rapid-Lock adapter, STAKIT Base 200 Case and gravity fed coolant system.
Technical Specification
CUTTER SIZE RANGE : 12 - 35mm TCT
MAX CUTTER CAPACITY: 35mm TCT
MAX CUTTER LENGTH: 110mm
TWIST DRILL CAPACITY: 12mm
MAX COUNTERSINKING: 25mm
LENGTH: 220mm
WIDTH (Inc Handles): 173mm
HEIGHT (Min-Max): 305-445mm
STROKE: 140mm
WEIGHT: 9.5kg
MAGNET (L X W): 160 x 80mm
MAGNETIC ADHESION: 1000 kgs
MOTOR POWER: 850w
TOTAL POWER: 900w
SPEED RPM (No Load): 750 min-1
SPINDLE: 3/4" Weldon
ARBOR: Integral ¾" Weldon
COOLANT SYSTEM: Gravity Oil Fed
WARRANTY: 2 Year (When registered)
Holemaker Technology V35 35mm Compact Mag Drill 240v Or 110v
STOCK CODE: HOLE/V35/1
